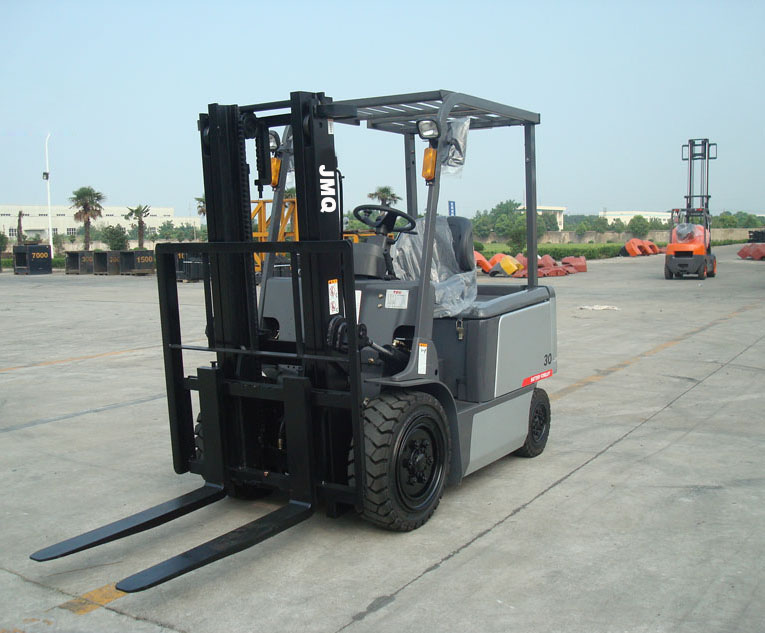

Electric Forklift FB20

Electric Forklift FB20

Model: FB20
Capacity: 2000kg
Lift height 3000mm
With Curtis controller, AC

0.00
0.00


Model: FB20
Capacity: 2000kg
Lift height 3000mm
With Curtis controller, AC

SPECIFICATION Item FB15 FB20 FB25 FB30 FB35 FB40
Load capacity kg 1500 2000 2500 3000 3500 4000
Load center mm 500 500 500 500 500 500
DIMENSIONS Max. lifting height(VM300) mm 3000 3000 3000 3000 3000 3000
Turning raduis(outside) mm 1780 1980 2000 2140 2200 2450
Overall length(without fork) mm 1955 2245 2285 2510 2560 2810
Total width mm 1070 1150 1150 1225 1225 1390
Mast height (fork lowering) mm 1995 1995 1995 2075 2075 2150
Height to head guard mm 2100 2145 2145 2190 2190 2425
Fork size (L×W×T) mm 920*100*35 1070*122*40 1070*125*45 1070*122*50 1070*150*50
Tilt range(forward/backward) deg 6/12 6/12 6/12 6/12 6/12 6/12
Truck weight(with standard battery) kg 2690 3440 3820 4660 4960 5260
TIRES front/rear 2/2 2/2 2/2 2/2 2/2 2/2
front axle 6.00-9-10-10PR 21*8-9-16PR 28*9-15-12PR 28*9-15-14PR 250-15-16PR
rear axle 16*6-8-10PR 18*7-8-14PR 18*7-8-14PR 18*7-8 18×7-8
DRIVE LINE Battery V/AH 48/400 48/450 48/565 72/480 72V-560 80V-550
Drive motor kw/60min 8 8 8 11 11 11
Hydraulic motor kw/5min 8.2 8.6 8.6 10 10 13
Control type Driving AC control type , lifting DC control type

Features
  • The truck body structure is compact. This forklift is simple and convenient to manipulate.
  • The getting-on pedal and suspending seat can reduce drivers' fatigue and make them feel more comfortable.
  • Our electric forklifts have gained ISO9000 certification and CE certification.
  • JM Electric forklift trucks have adequate power. After each charge, they can be operated continuously for seven hours.
  • Our company owns a technical development team who pursuits the best cost-effective products and provides high quality and timely service.
  • Self-diagnose and high accuracy sensor reminds operators for regular service and increase safety.
  • Attentions Electric Forklift
  • This electric forklift truck is suitable for indoor logistics transport.
  • Drivers who have been trained and hold driving licenses can drive this forklift.
  • Stable starting, steering, driving, braking and stopping are quite necessary. When we drive this 2.5 ton electric forklift on wet or slippery road, we need to slow down while steering.
  • Material handling should not exceed the specified load. The pallet fork should insert below the cargoes and make cargoes distribute evenly on the fork. It is prohibited to use a single fork tip to pick the cargoes.
  • Check each control and alarm device before driving the 2.5 ton electric forklift. If there is damage or defect, it must be operated after repair.
  • When this electric forklift truck loaded with material is driving, we should ensure that the cargoes are lowered and the door frame is inclined to the rear.
